Time and access Control - F710

Time and access Control - F710

Face ID is industry first embedded facial recognition system with leading “Dual Sensor™” Facial Recognition Algorithm, which designed for application like physical access control and time attendance, identity management and so on.

  • Features

    Features :

    Embedded facial recognition system :
    • Adopt US advanced DSP technology keeps processing and matching right on the device
    • Standalone application as time attendance. Access control, user identification

    Accurate and Fast Identification :
    • Industrial Leading “Dual Sensor™” Facial Recognition Algorithm, FAR<0.0001%
    • 1:Many up to 1400 users less than 1 second

    High Usability and Security :
    • Failure to enroll and acquire rate is less than 0.0001%
    • ncident trackable for security with photo

    Large user and log capacity :
    • User capacity from 500 to 1400
    • Over 150,000 logs and optional image capacity over 70,000

    Reliable performance under different environments :
    • Different source-light Technology
    • The system can work in different light condition even in the dark
    • Over one year Chinese market testing

    Flexible I/O interfaces :
    • Internet Protocol based enables LAN or Network deployment
    • USB Host for User data upload or download via USB flash driver
    • Wiegand output makes system compatible with different access control panel

    User friendly design :
    • 3.5 inch color screen for face positioning
    • contactless authentication for the ultimate in hygienic
    • voice prompt

    Other Functionalities :
    • Multi authentication methods that able to work with Facial, RFID Cards, Cards+Facial
    • Low power consumption,12Watts in operation, less than 5Watts in resting mode

  • Technical Specifications :

      F710
    Processor TI DM CPU 600MHz
    User Capacity 500 Users
    Record Capacity 150,000 Access Control Records
    Recognition Algorithm Dual Sensor™ V2.0
    Sensor Specialized double sensor
    Verification Method Facial Recognition, Card & Facial Recognition
    Verification Speed Less than 1 Second(500 Users)
    Keyboard 4*4 Touch Keypad
    LCD 3.5 inch TFT Color Screen, 65,000 Bright Color, 320*240 Resolution
    Communication Method Standard TCP/IP, USB Host
    Power 12V DC, Working Current 500 mA
    Environment Light 0-5000Lux
    Working Distance 30-80cm
    Working Temperature 0oC-40oC
    Working Humidity 20% - 80%
    Size 200* 95* 115 mm
    Weight 505g
    Installation Method Wall Mounting
    Security Image Capacity 4GB SD Card, 70,000 images
    Card Recognition EM or Mifare card
    Security Alarm Tamper Alarm
    Output for Access Control System Standard Wiegand 26/34 output?Built-in relay
    Certification CE FCC Class A ROHS

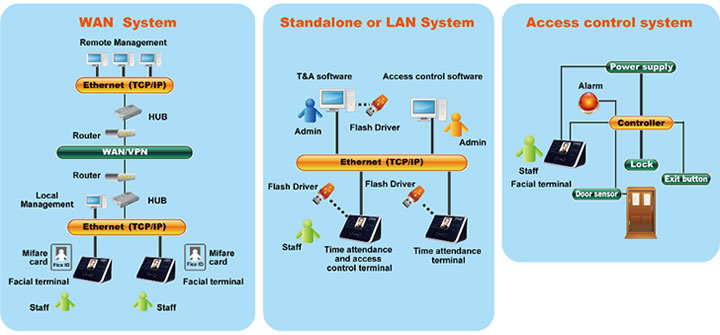

    System Configuration :
